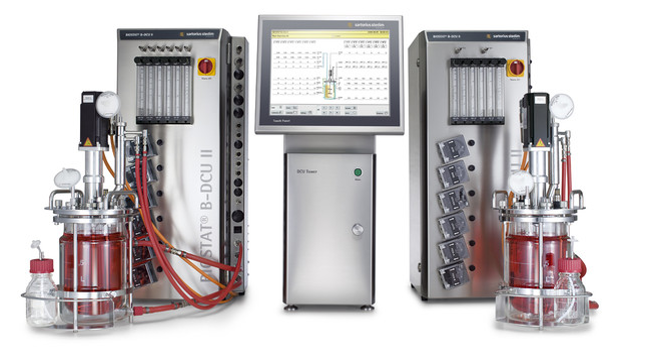

Bioreactor: Sartorius 4 (w/MFCS) - BIOSTAT B-DCU II

What is it?
It is a fermenter | bioreactor specifically designed to accommodate the requirements of process optimization and characterization in the food, biotech and biopharmaceutical industry.

Manufacturer: Sartorius Stedim

Model Name: BIOSTAT B-DCU II System

Applications: The Industry Standard Bioreactor for Advanced Process Optimization and Characterization for microbial fermentation.

Instrument Overview: It provides enhanced functionality and an unrivalled level of options for cell culture and microbial processes making it the ideal scale-down model for your large scale process.

Technical features and specifications:
System Safe Operating Limits
1) Operating volume
a. 2L bioreactor: 0.6 – 2L
b. 5L bioreactor: 0.6 – 5L
2) Operating temperature
a. 8 – 80°C
3) Stirrer driver
a. 2L bioreactor: 20 – 2000 rpm
b. 5L bioreactor: 20 – 1500 rpm
4) Gas
a. Compressed air: 1.5 barg
b. Nitrogen: 1.5 barg
c. Oxygen: 1.5 barg
d. Carbon dioxide: 1.5 barg


Instrument Manufacturer URL: https://www.sartorius.com/download/12080/broch-biostat-b-dcu-sbi1555-e-data.pdf

Detailed Specifications:
NA
