Magnetometry: Spin-torque Ferromagnetic Resonance Setup

What is it?
The setup is used to measure the spin-torque ferromagnetic resonance to study the magnetic properties and the spin-orbit-torque at ultrahigh frequency at gigahertz.

Manufacturer: Lakeshore

Model Name: EM1181

Applications: It is used to study the ferromagnetic resonance of the magnetic materials and the spin-orbit torque in the materials.

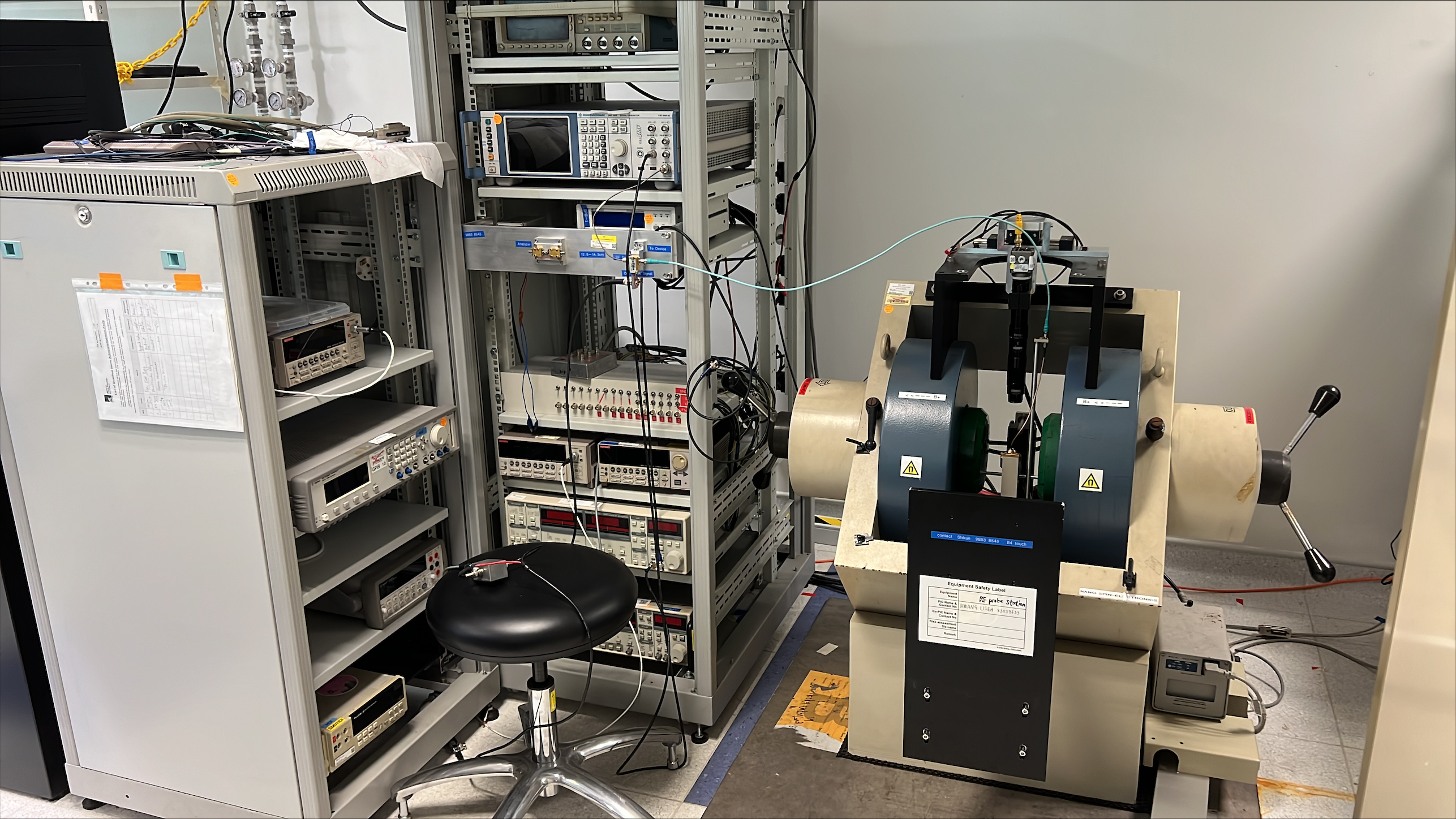

Instrument Overview: The ST-FMR setup is modified from the commercial VSM by using its electromagnet. Equipped with other electrical instruments such as RF signal generator, lock in amplifier, and current source meter, the setup is used to measure the spin-torque ferromagnetic resonance of magnetic devices. The main objective is to study the ferromagnetic resonance of the magnetic materials and the spin-orbit torque in the materials.

Technical features and specifications:
• 6inch magnet surface to provide uniform magnetic field • Magnetic field up to 1 Tesla at large gap • RF Signal generator provides wide frequency range from 100kHz to 40 GHz and output power range from -120 dBm to 16 dBm

Charges:
N.A.

Instrument Manufacturer URL: NA

Detailed Specifications:
NA
