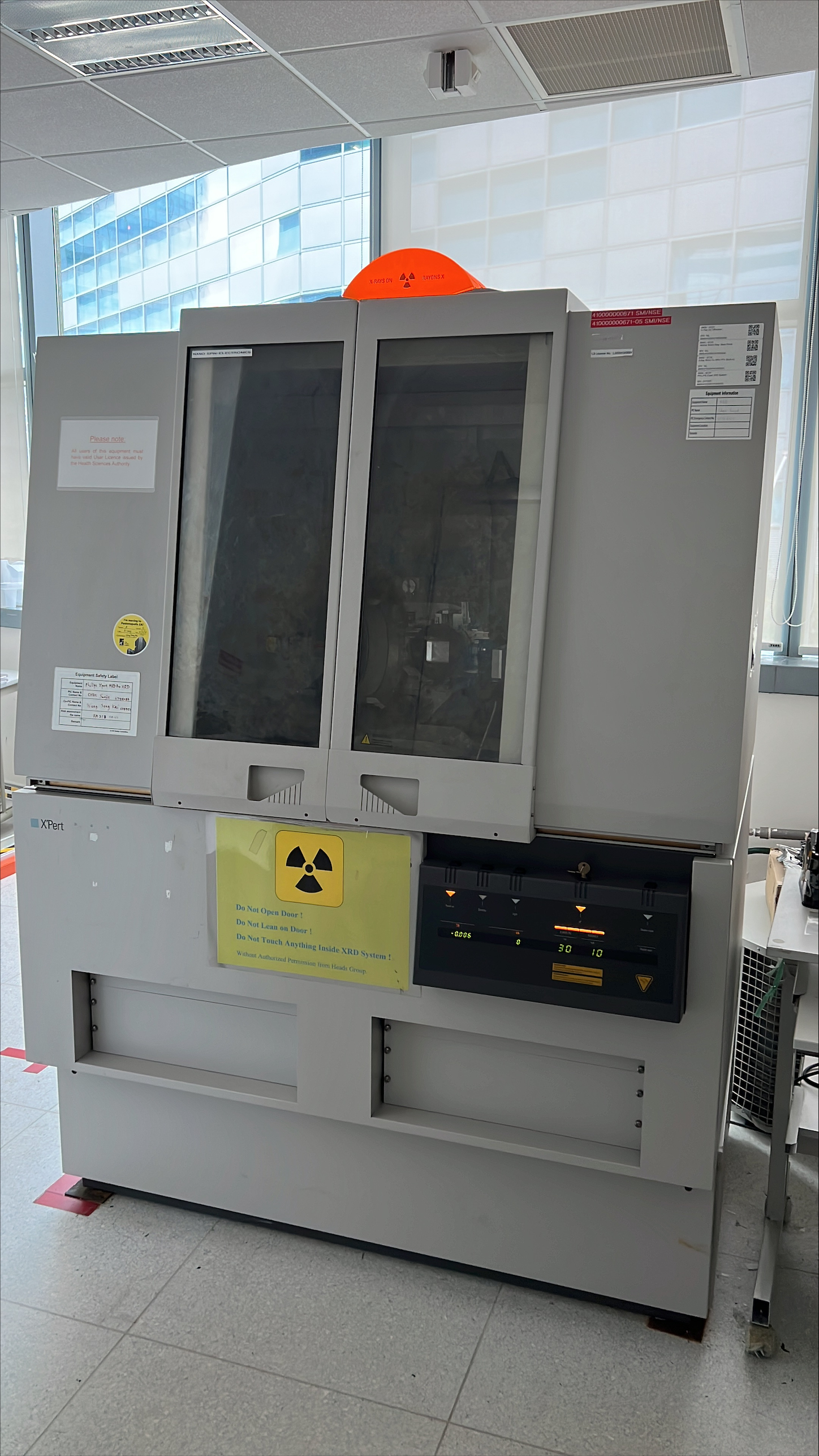

X-Ray Spectroscopy: XRD System (Panalytical XPert Pro MRD)

What is it?
Diffraction data is acquired by exposing powder samples to X-ray radiation.

Manufacturer: Panalytical

Model Name: X'Pert Pro MRD

Applications: phase determination, crystallographic structure determination, Rocking curve, X-ray reflectivity

Instrument Overview: High resolution analysis. System comprises of different optics with high degree of freedom X-ray Diffraction. Perform high resolution measurements for structural, phase, texture, residual stress and crystal quality analysis.

Technical features and specifications:
Ceramic XRay Tube Cu: Selectable line or point focus 1.8kW sealed ceramic copper x-ray tube source;
Open 1/2 circle Eulerian cradle with motorized XYZ sample stage enables sample tilts of +/- 90°
in-plane rotation of 360°, in-plane X and Y translations of 100 mm,
and vertical Z displacement of 11 mm;
Sample holder accommodates samples up to 4 inches in diameter

Charges:
NA

Instrument Manufacturer URL: https://www.malvernpanalytical.com/en/products/brand/panalytical
