Automated industrial 3D scanning and photogrammetry

Key Service

High-precision 3D scanning and digital inspection using advanced optical measurement technology to capture detailed surface geometries of parts or components by projecting fringe patterns onto the object and analyzing the 3D coordinates from multiple angles. This service is ideal for industries such as aerospace, automotive, and manufacturing, where precise and comprehensive measurement is critical. The lab can use this system for applications like dimensional analysis, quality control, reverse engineering, and rapid prototyping. The service offers high-resolution, non-contact scanning, enabling accurate assessments of complex shapes, freeform surfaces, and small intricate features. The service typically includes full 3D documentation, deviation analysis, and reporting to ensure parts meet design specifications and tolerances.

Applications

- 3D scans for medium to large components - Reverse engineering - Full-field deviation to CAD, 2D and part-to-part Section-based analysis - GD&T and trend analysis

Key Equipment

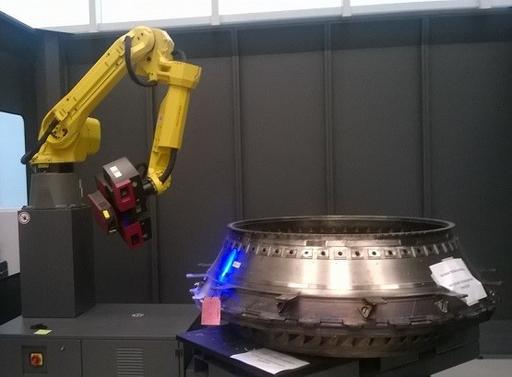

GOM Atos Scanbox 6130
